Recommended Coupling Types by Equipment Area
A coupling in this application is not only a shaft connector. It protects motors, gearboxes, bearings and driven equipment from heavy load, braking shock, outdoor corrosion and overload risk. Typical options include Drum Gear Coupling, Gear Coupling, Safety Coupling, Elastic Pin Gear Coupling, selected according to torque, speed, misalignment, environment and maintenance access.
| Equipment / zone | Recommended coupling type | Selection reason |
|---|---|---|
| Hoist and winch drive | Drum gear coupling or gear coupling | Compact high-torque transmission for lifting and braking duty. |
| Travel drive and overload-sensitive equipment | Pin gear coupling or safety coupling | Combines cushioning with protection under braking and impact. |
Why the Coupling Selection Matters
A coupling in this application is not only a shaft connector. It protects motors, gearboxes, bearings and driven equipment from heavy load, braking shock, outdoor corrosion and overload risk. Typical options include Drum Gear Coupling, Gear Coupling, Safety Coupling, Elastic Pin Gear Coupling, selected according to torque, speed, misalignment, environment and maintenance access.
Technical Parameters Needed for a Quote

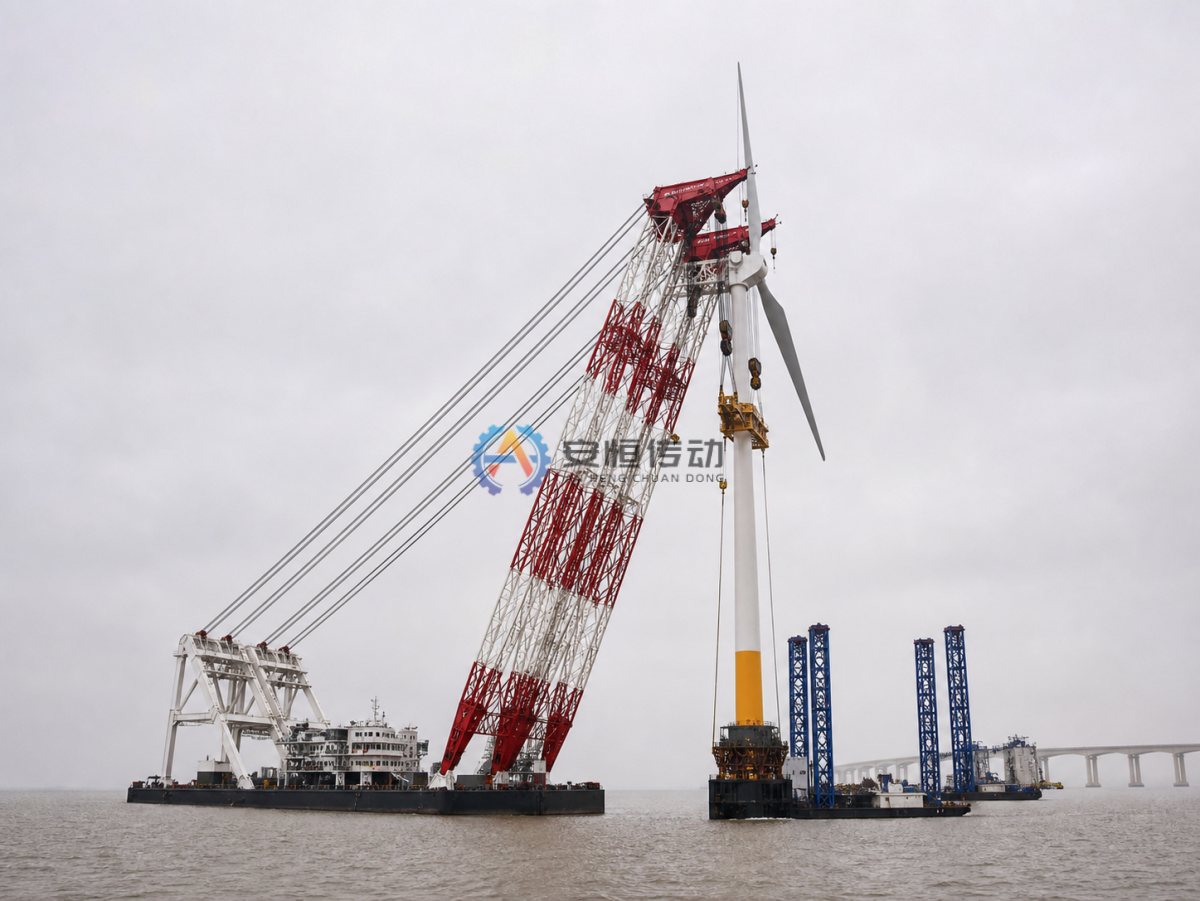

To quote or replace a port crane coupling accurately, provide drawings, old part photos or nameplate data together with the following parameters.
| Parameter | Why it matters |
|---|---|
| Torque and peak torque | Determines size, service factor and strength margin. |
| Speed range | Affects balancing, lubrication and vibration. |
| Shaft diameter and keyway | Controls bore fit and replacement compatibility. |
| Misalignment and axial float | Defines whether flexible, gear or universal coupling is suitable. |
| Working environment | Dust, water, heat or corrosion changes sealing and material choices. |
| Drawings or old part photos | Helps confirm custom replacement without changing the equipment interface. |
Installation and Maintenance Notes
Before installation, check foundation, shaft runout and shaft-end distance. After trial run, inspect temperature, vibration, noise, bolt preload and lubrication. For replacement projects, confirm the final drawing before production.
Drum Gear Coupling
Gear Coupling
Safety Coupling

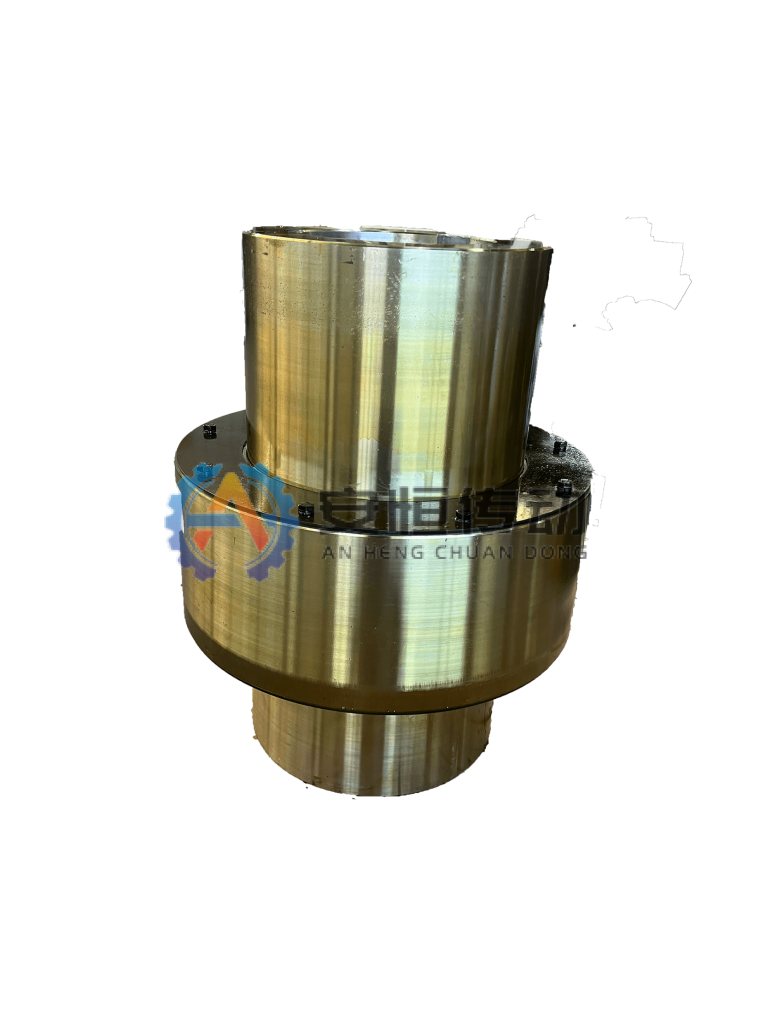

Elastic Pin Gear Coupling
