Industrial Coupling

Gear Coupling

Designed for hoists, conveyors, winches and compact heavy-duty drives; compact high-torque transmission with reliable lubrication and sealing.

  • Metal gear meshing
  • Good rigidity
  • Reliable torque transmission
  • Limited offset compensation
Series
CL / CLZ
Model entries
38
HTML tables
2
Drawings / files
17

No drawing? Send old coupling photos, nameplate details and shaft dimensions.

Documented engineering data

Product Overview and Application Boundary

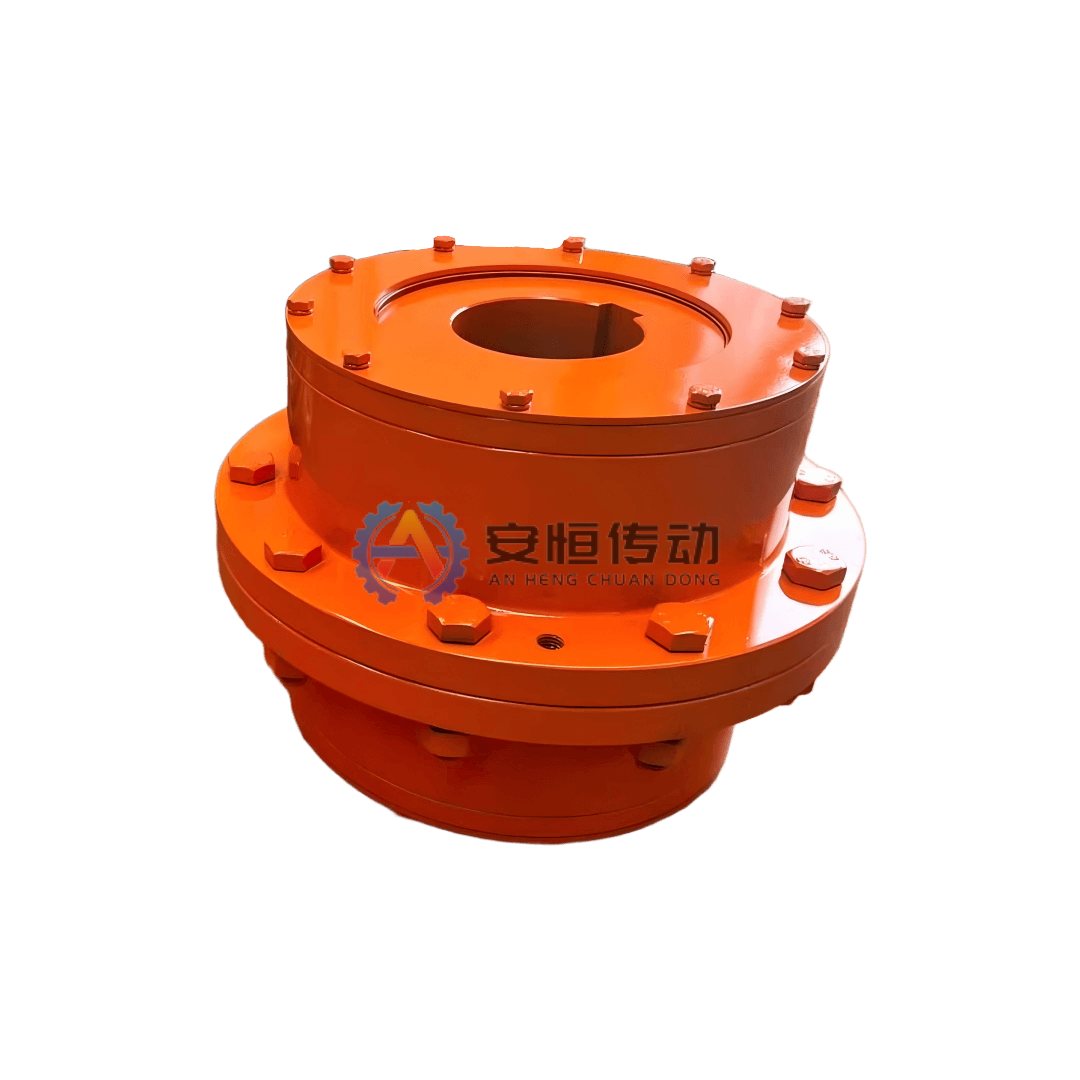

A gear coupling is usually composed of two externally toothed hubs, an internal gear sleeve, end covers, seals and fasteners. Torque is transmitted through internal and external gear meshing, giving the coupling high torque capacity in a compact envelope. It is suitable for hoists, conveyors, winches, reducer output shafts and heavy-duty drives with limited installation space. Selection should check nominal torque, allowable speed, bore d1/d2, keyway standard, shaft-end distance, lubrication, sealing and alignment condition. For replacement projects, drawings, old part photos or measured dimensions help verify tooth strength, bore fit, material, heat treatment and interchangeability.

Typical use

Recommended for hoists, conveyors, winches and compact heavy-duty drives.

Selection focus

Confirm torque, speed, shaft diameter, keyway, service factor, misalignment and working environment before selection.

Custom options

Bore, keyway, material, heat treatment, dynamic balancing, surface treatment and export packing can be customized.

Material and inspection

Common materials include 45 steel, 42CrMo or project-specified grades; inspection records can be supplied on request.

Manufacturing Control

Machining, Heat Treatment and Inspection Process for Gear Coupling

This route follows Gear Coupling from drawing and material review through blank preparation, CNC rough machining, feature machining, heat treatment, reinspection, finish machining, assembly and final release. The approved drawing determines the exact material and treatment route.

Manufacturing and inspection flowchart for Gear Coupling
Typical machining and heat-treatment route for Gear Coupling; drawing-specific operations are released only after technical approval.
  1. 01. Drive data and drawing review: Confirm torque, speed, shaft interfaces, alignment allowance, acceptance criteria and the approved drawing before release.
  2. 02. Material certificate and blank inspection: Verify material identity, certificate, heat number, blank dimensions and the specified forging, casting or bar-stock route.
  3. 03. Saw cutting and forging/casting blank preparation: Saw-cut the stock or prepare the forging/casting blank, remove scale, transfer traceability marks and retain machining allowance.
  4. 04. CNC rough turning of hubs and sleeves: Use CNC or vertical lathes to rough-turn faces, outside diameters, bores and datum shoulders, leaving allowance for heat-treatment distortion and finishing.
  5. 05. Hobbing/shaping internal and external gear teeth: Machine the named teeth, grooves, holes, splines or mechanism features by turning, milling, hobbing, shaping, drilling, boring or grinding as specified.
  6. 06. Pre-heat-treatment dimensions, allowance and datum inspection: Before heat treatment, record datum dimensions, tooth thickness, hole position, machining allowance and visible-defect inspection results for distortion control.
  7. 07. Normalizing/Q&T and tooth-surface hardening to drawing: Normalize or quench-and-temper the gear blanks as specified. If tooth-surface strengthening is required, apply the approved induction hardening, carburizing or nitriding route, followed by tempering and batch records.
  8. 08. Hardness, distortion and NDT reinspection: Check hardness, effective case where applicable, distortion and surface condition; perform UT, MT or PT when required before final machining.
  9. 09. Bore, keyway and seal-seat finishing: Finish-turn or grind datum faces and fits, then bore the shaft holes and machine keyways, splines, seal seats or mounting interfaces to the approved tolerances.
  10. 10. Tooth contact, runout and assembly inspection: Verify dimensions, runout, tooth or component fit and controlled assembly; record lubrication, fastener, balance or functional checks applicable to the product.
  11. 11. Final inspection, marking and release: Complete final inspection, traceability marking, rust protection and packing only after the required records and acceptance results are complete.

Documented engineering data

Selection Information to Confirm

Final model selection is based on the actual drive data and approved drawing. Provide the items you already know; unknown values can be reviewed by engineering.

Upload Drawing & Get Quote
  1. 01Required torque or motor power and service factor
  2. 02Operating speed, peak load, starts and reversing duty
  3. 03Shaft diameters d1/d2, keyways and fit requirements
  4. 04DBSE, overall length and available installation space
  5. 05Temperature, dust, moisture, corrosion and maintenance access
  6. 06Existing drawing, old part photo, nameplate or measured dimensions

Documented engineering data

Model and Dimension Data

Use each catalogue drawing together with its HTML table. Final torque, speed, bore, material and fit remain subject to the approved project drawing.

CL Gear Coupling data sheet

Source: GB/T5015-2003
Dimension points to confirm
CL Gear Coupling dimension drawing with bore, outside diameter, length and installation confirmation points
Select a thumbnail. Hover or tap the main image to inspect details.

On smaller screens, swipe horizontally or view the compact model cards.

ModelNominal torque Tn kN·mAllowable speed n r/minBore diameterBore length LMain dimensions mmMoment of inertia kg·m²Weight kg
BDD1D2CC1C2
CL10.71378018-4030-1121061701105516-2.518.5-1118.50.0310.9
CL21.4300030-5060-112134185125702.51322-280.0515.5
CL33.15240040-6084-142170220150902.51528-360.1328.3
CL45200045-7584-1422002501751102.521-1728-360.2141.3
CL58168050-9084-172220290200130530400.4560.4
CL611.2150060-110107-212246320230140525400.7082.9
CL718127065-120107-212286350260170540-2540-451.15118
CL822.4114080-140132-252325380315190535-30452.33160
CL928100090-150132-302335430365210540-30-3.55212
CL1050850110-180167-302365490420260530-7.00327
CL1171750120-220167-352405545470330540-35-13.75443
CL12100660140-250202-410485590520340545-38-21.25621
CL13140600160-280242-4705246805903807.545-40.00918
CL14200540180-320242-4705657306504207.550-53.751123
CL15250480200-360282-5506447807004807.550-81.251360
CL16355425240-400330-65072090078553010--1502264
CL17560380260-450330-650800100088563010--2353105
CL18710330300-500380-650900110099071010--4004219
CL191000300360-560450-8009101250109080015--6755908

CLZ Gear Coupling data sheet

Source: GB/T5015-2003

On smaller screens, swipe horizontally or view the compact model cards.

ModelNominal torque Tn kN·mAllowable speed n r/minBore diameterBore length LMain dimensions mmMoment of inertia kg·m²Weight kg
DD1D2D3C
CLZ10.71378018-50 (60)40-14217011055952.50.0312.8
CLZ21.4300030-50 (70)82-142185125701102.50.0617.5
CLZ33.15240040-60 (90)112-172220150901452.50.1233
CLZ45.6200045-75 (100)112-2122501751101702.50.2247.3
CLZ58168050-90 (120)112-21229020013019050.4469.8
CLZ611.2150060-110 (130)142-25232023014021050.7596.1
CLZ718127065-120 (150)142-25235026017024051.25129
CLZ823.6114080-140 (170)172-30238031519027052.06179
CLZ928100090-160 (190)172-35243036521028052.56221
CLZ1050850110-180 (220)212-35249042026032055328
CLZ1171750120-220 (250)212-41054547030038059.25468
CLZ12100660140-250 (280)252-470590520340420512.5658
CLZ13140600160-250 (300)302-4706805903804807.529.9993
CLZ14200540180-320 (340)302-5507306504205207.542.51206
CLZ15250480200-360 (380)352-5507807004805607.556.91495
CLZ16355425240-360 (420)410-650900785530650101202319
CLZ17560380260-450 (480)410-6501000885630750102523363
CLZ18710330300-530470-8001100990710820103254451
CLZ191000300360-560550-80012501090800920155686010

FAQ

Product Selection FAQ

Can the Gear Coupling be customized from a drawing or old part?

Yes. We can confirm bore, keyway, material, heat treatment, balancing grade, surface treatment and export packing by drawing or old part photos.

What information is needed before quotation?

Please send torque or motor power, speed, shaft diameter, keyway, equipment type, working condition, quantity, drawings or old coupling photos.

Can it replace an imported coupling brand?

Replacement is evaluated after checking dimensions, torque, material, installation space and working condition. Final drawings should be confirmed before production.

What applications are a good fit for the Gear Coupling?

Recommended for hoists, conveyors, winches and compact heavy-duty drives.

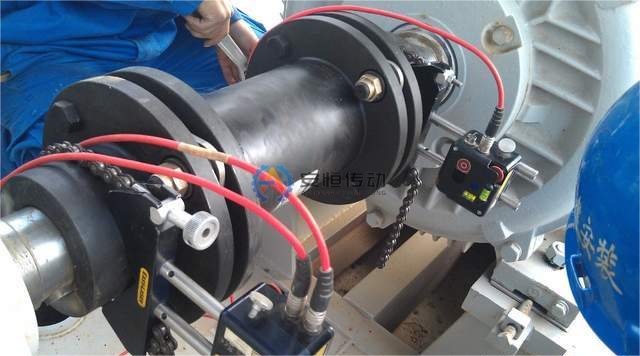

What should be checked during installation and maintenance?

Check shaft alignment, bore and keyway fit, fastener tightening, seals and the specified lubrication condition. Reinspect tooth contact, lubricant condition and abnormal noise during planned maintenance.
