Recommended Coupling Types by Equipment Area
A coupling in this application is not only a shaft connector. It protects motors, gearboxes, bearings and driven equipment from speed, vibration, balancing and alignment accuracy. Typical options include Diaphragm Coupling, Pin Bush Coupling, Tyre Coupling, Grid Coupling, selected according to torque, speed, misalignment, environment and maintenance access.
| Equipment / zone | Recommended coupling type | Selection reason |
|---|---|---|
| High-speed blower and fan | Diaphragm coupling | Low backlash, no lubrication and good dynamic balance. |
| Water pump and auxiliary pump | Pin bush coupling or tyre coupling | Provides damping and easy wear-part replacement. |
Why the Coupling Selection Matters
A coupling in this application is not only a shaft connector. It protects motors, gearboxes, bearings and driven equipment from speed, vibration, balancing and alignment accuracy. Typical options include Diaphragm Coupling, Pin Bush Coupling, Tyre Coupling, Grid Coupling, selected according to torque, speed, misalignment, environment and maintenance access.
Technical Parameters Needed for a Quote
To quote or replace a pump and fan coupling accurately, provide drawings, old part photos or nameplate data together with the following parameters.
| Parameter | Why it matters |
|---|---|
| Torque and peak torque | Determines size, service factor and strength margin. |
| Speed range | Affects balancing, lubrication and vibration. |
| Shaft diameter and keyway | Controls bore fit and replacement compatibility. |
| Misalignment and axial float | Defines whether flexible, gear or universal coupling is suitable. |
| Working environment | Dust, water, heat or corrosion changes sealing and material choices. |
| Drawings or old part photos | Helps confirm custom replacement without changing the equipment interface. |
Installation and Maintenance Notes
Before installation, check foundation, shaft runout and shaft-end distance. After trial run, inspect temperature, vibration, noise, bolt preload and lubrication. For replacement projects, confirm the final drawing before production.

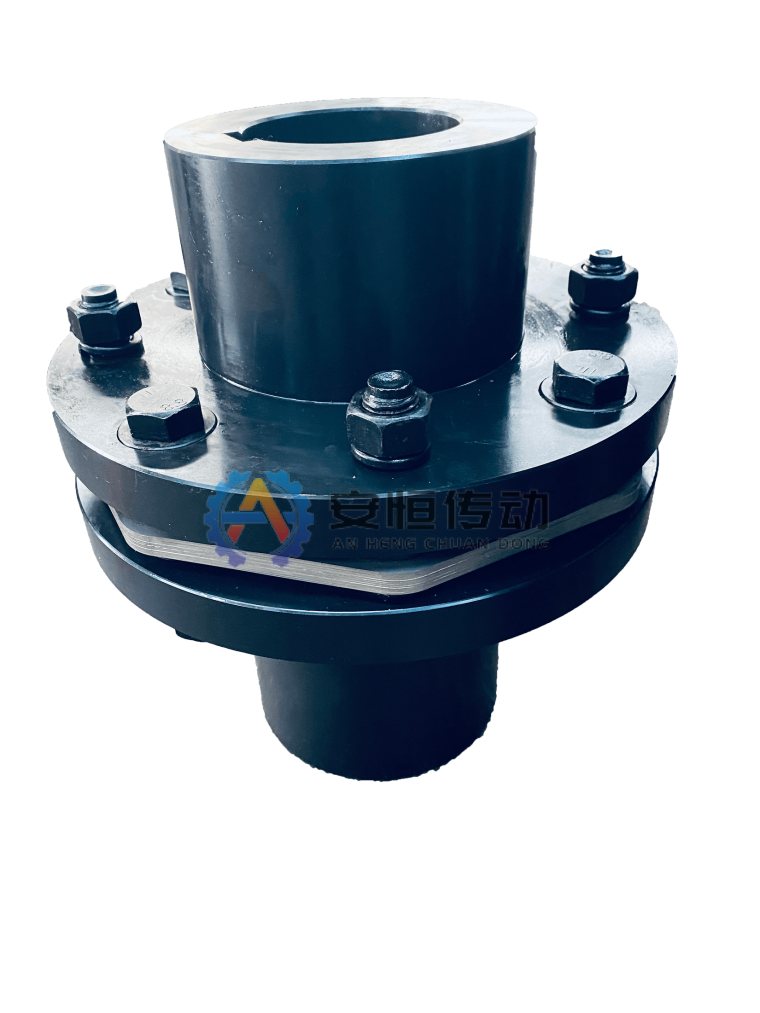

Diaphragm Coupling
