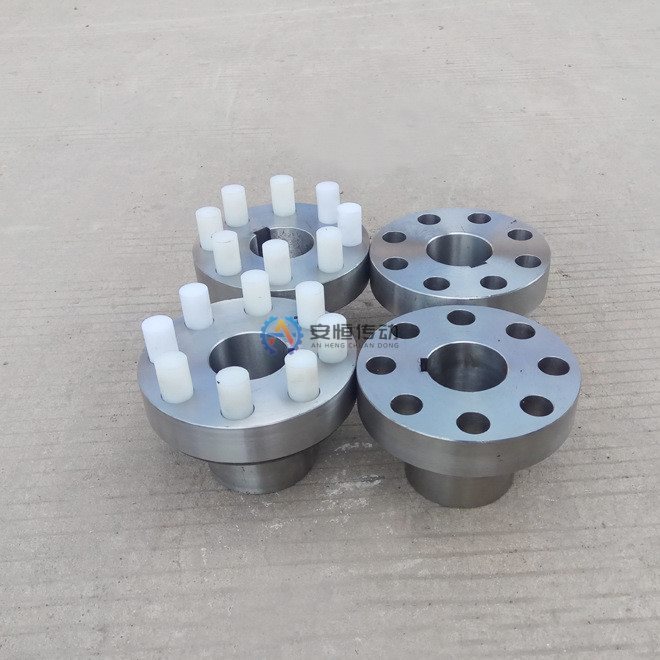

Disc Feeder Coupling Selection for Steel Plants: Why Use Pin Bush Coupling?
Disc Feeder Coupling Selection for Steel Plants: Why Use Pin Bush Coupling?
Disc Feeder operating conditions in a steel plant
This steel plant drive works under changing load, dust, vibration and limited maintenance access. The coupling should be checked against torque, speed, shaft fit and the actual installation envelope.
For this drive, treat the coupling as part of the whole shaft system. Motor power, reducer ratio, start method, site temperature and maintenance access all influence the final model.
For Disc Feeder, a poor coupling match usually shows up as abnormal noise, loose bolts, keyway fretting, rising bearing temperature or repeated seal damage. Before changing to another model, check whether the original problem comes from undersized torque capacity, poor alignment, weak lubrication or a shaft fit issue.
Why use Pin Bush Coupling for Disc Feeder?
This coupling type is selected for its balance of torque transmission, misalignment control, cushioning and maintenance convenience. The final choice still depends on the real duty cycle and installation dimensions.
Disc Feeder coupling selection parameters to confirm
Confirm these items before quotation: rated torque and peak torque, operating speed, shaft diameters d1/d2, keyway standard, allowable axial movement, angular or radial misalignment, ambient temperature, duty cycle, starting frequency and required balance grade.
Bore, keyway and installation fit
Measure the old coupling instead of relying only on nameplate power. Bore tolerance, keyway width, hub length, brake disc or brake wheel size, spacer distance and guard clearance all affect whether the replacement part can be installed without machining on site.
When this coupling choice is not suitable
Avoid replacing only by outside diameter or old part appearance. Two couplings with similar size may have different torque rating, bore length, material and heat treatment.
Failure signs to check before replacement
Before replacing the Pin Bush Coupling on Disc Feeder, inspect the hub bore, keyway contact marks, bolt holes, sealing surface and lubricant condition. If wear is one-sided, the root cause is usually alignment or shaft movement, not only coupling quality.
Installation and maintenance notes
Keep both shafts clean, verify runout before tightening bolts, use the specified lubricant or fastening torque, and recheck alignment after the first load test. For dusty steel plant areas, sealing and scheduled inspection are as important as nominal torque.
Drawings and site data that improve quotation accuracy
For replacement projects, clear photos of the installed coupling, nameplate, shaft ends and surrounding guard are often more useful than a short text description. If a drawing is available, mark bore diameter, keyway, hub length, total length and any brake wheel or spacer dimension.
RFQ checklist for engineering review
Send the equipment name, Disc Feeder working condition, motor power, RPM, shaft diameter, keyway, quantity, drawing or old coupling photos. With these details, Anheng can recommend a Pin Bush Coupling model and confirm whether a standard catalogue size or a custom replacement is safer.
